CRPA anti-jamming GNSS antenna units
Sealed CRPA units sharing one design language and integration approach, sized from micro platforms up to fixed installations.
01
Single Frequency Anti-Jamming 4-element Array Antenna — 50 mm unit
Micro unmanned platforms
- Size
- 50 × 50 × 21.3 mm
- Weight
- ≤ 120 g
- Supply
- DC 9–36 V
- Mounting
- Overhead installation
02
Single Frequency Anti-Jamming 4-element Array Antenna — 65 mm unit
Small unmanned platforms
- Size
- 65 × 65 × 23.7 mm
- Weight
- ≤ 200 g
- Supply
- DC 9–36 V
- Mounting
- Overhead installation
03
Dual Frequency Anti-Jamming 4-element Array Antenna
Small and medium unmanned platforms
- Size
- 100 × 100 × 24.5 mm
- Weight
- ≤ 400 g
- Supply
- DC 12–36 V
- Mounting
- Overhead installation
04

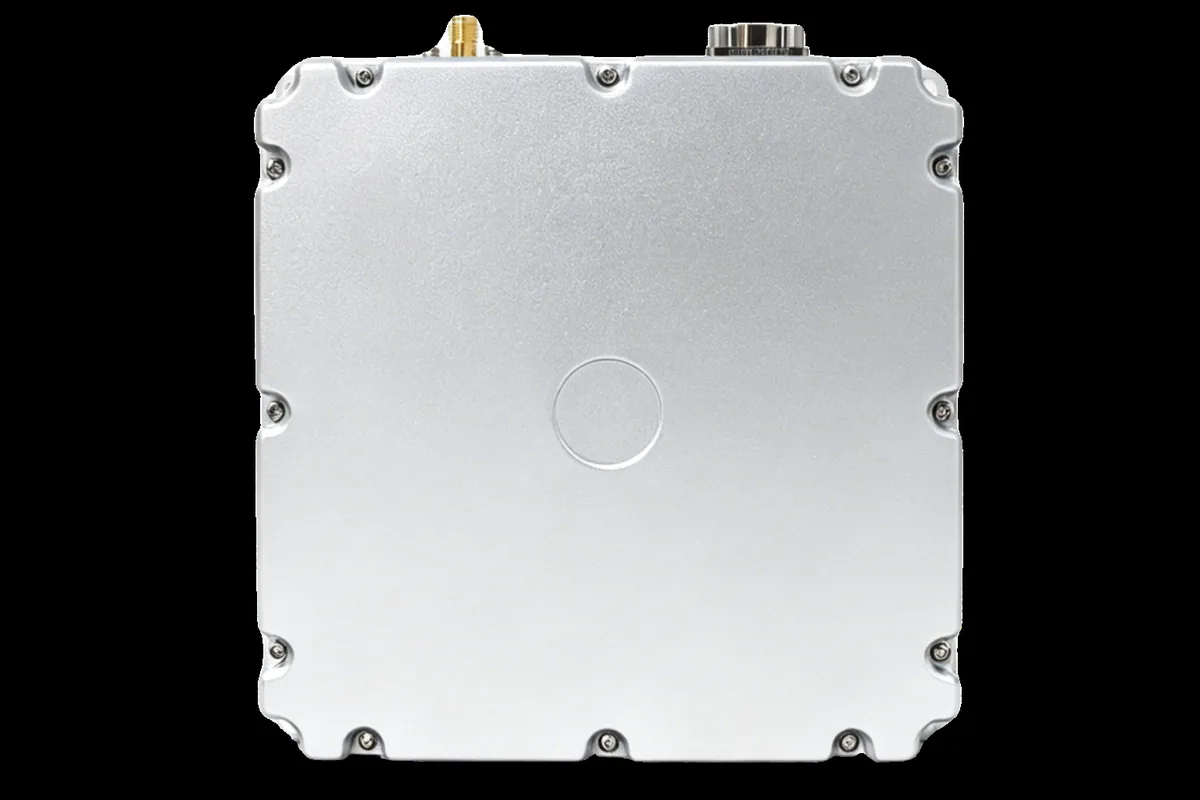

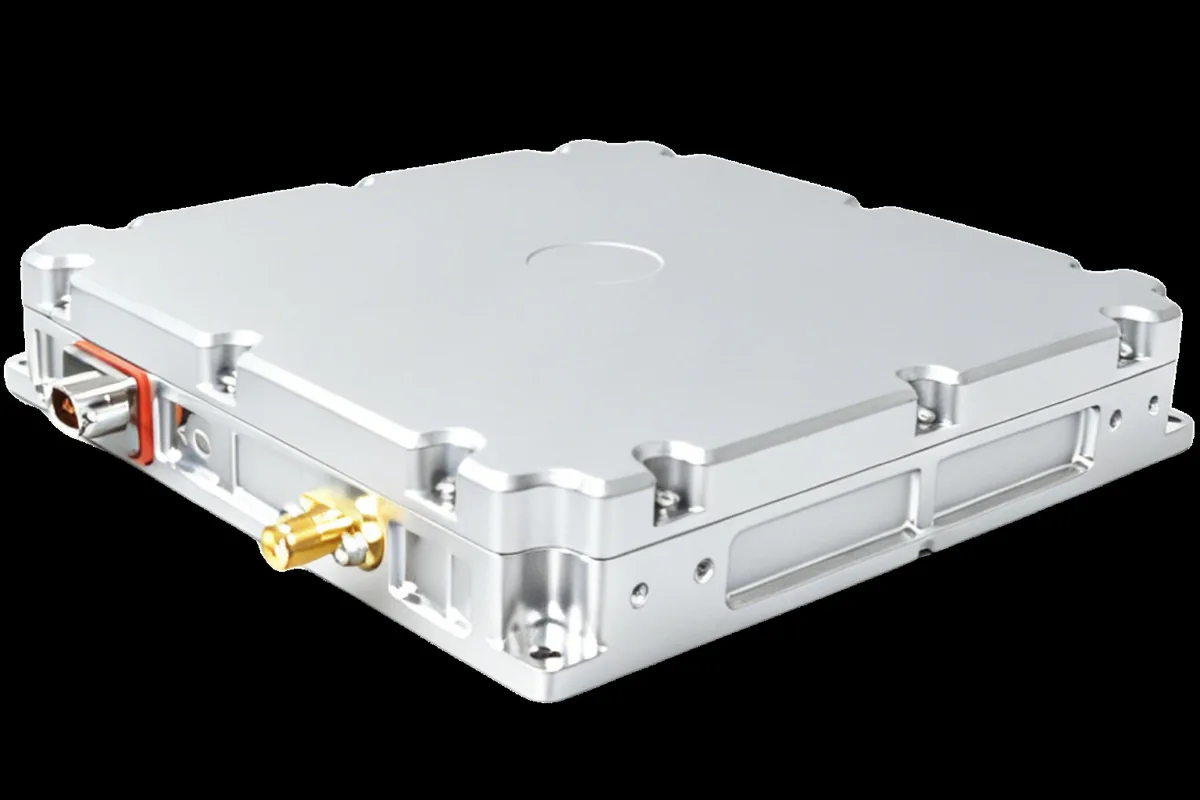

Single Frequency Anti-Jamming 8-element Array Antenna
Heavy-lift platforms in challenging signal environments
- Size
- 130 × 130 × 23.7 mm
- Weight
- ≤ 500 g
- Supply
- DC 12–36 V
- Mounting
- Overhead installation
05

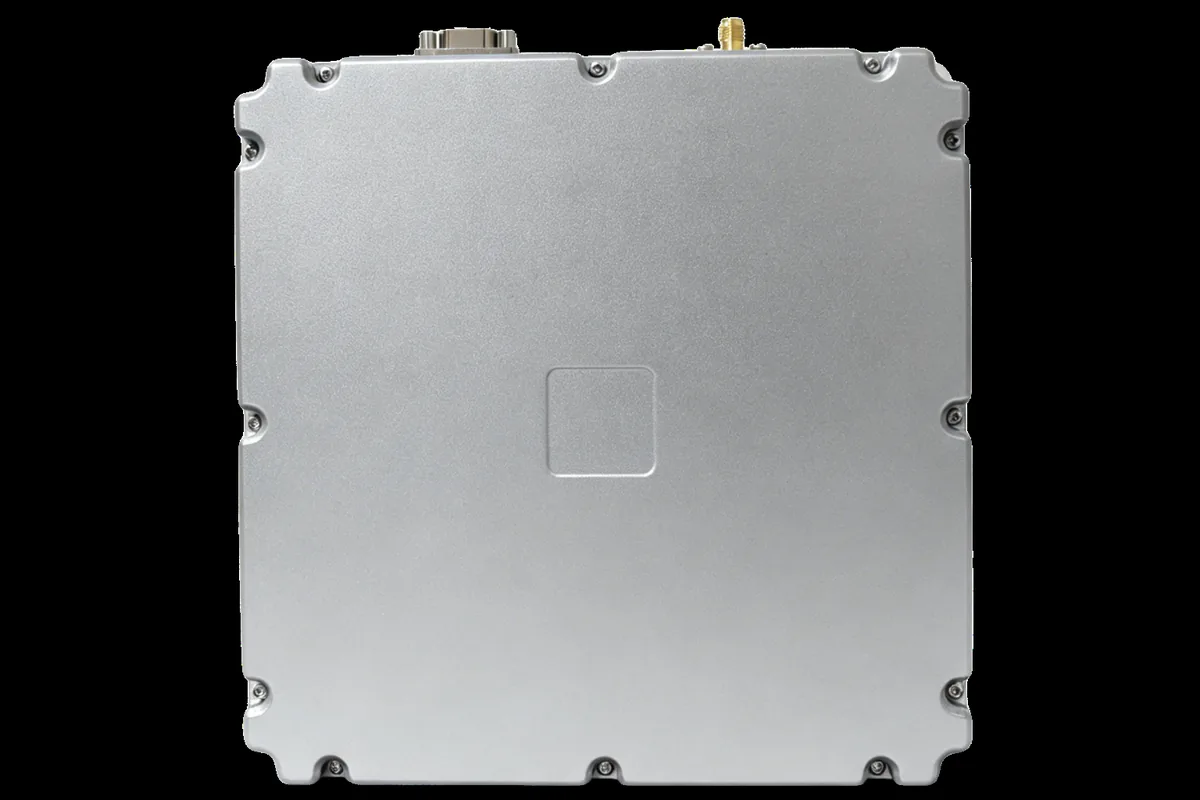

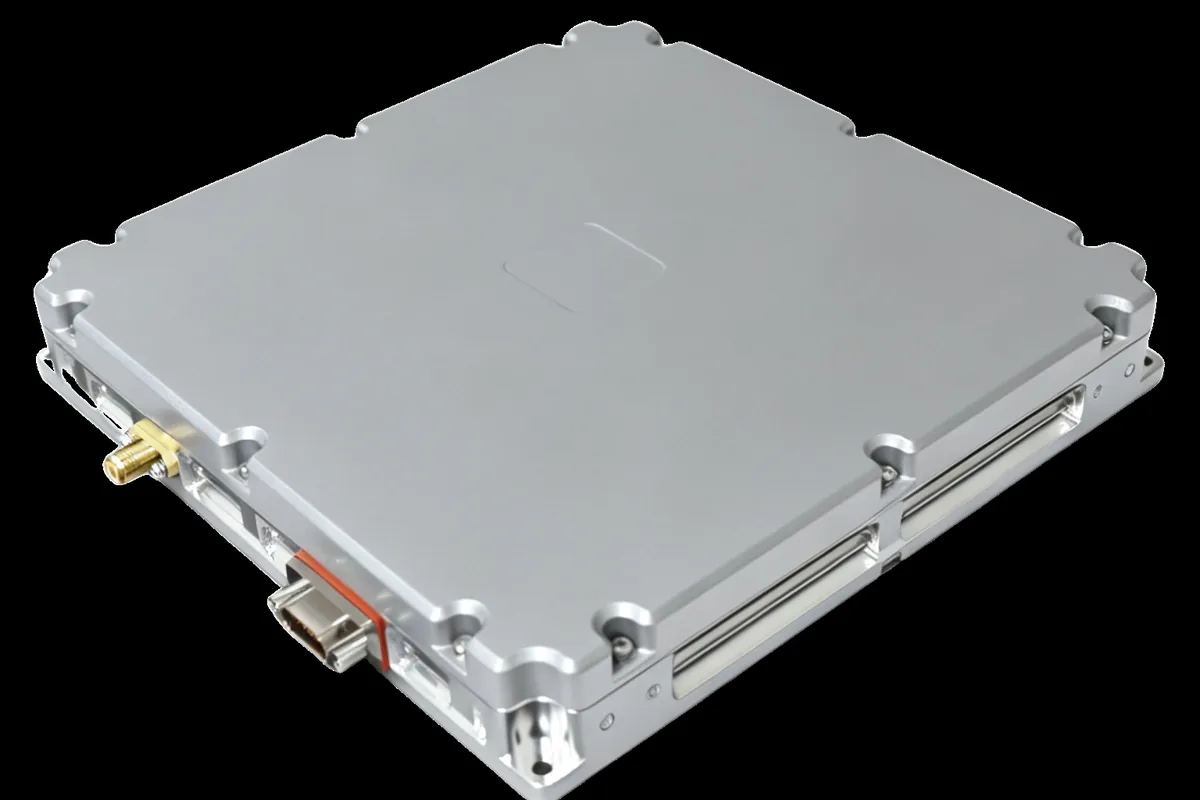

Dual Frequency Anti-Jamming 8-element Array Antenna
Heavy-lift and multi-payload platforms
- Size
- 160 × 160 × 24.5 mm
- Weight
- ≤ 900 g
- Supply
- DC 12–36 V
- Mounting
- Overhead installation
06

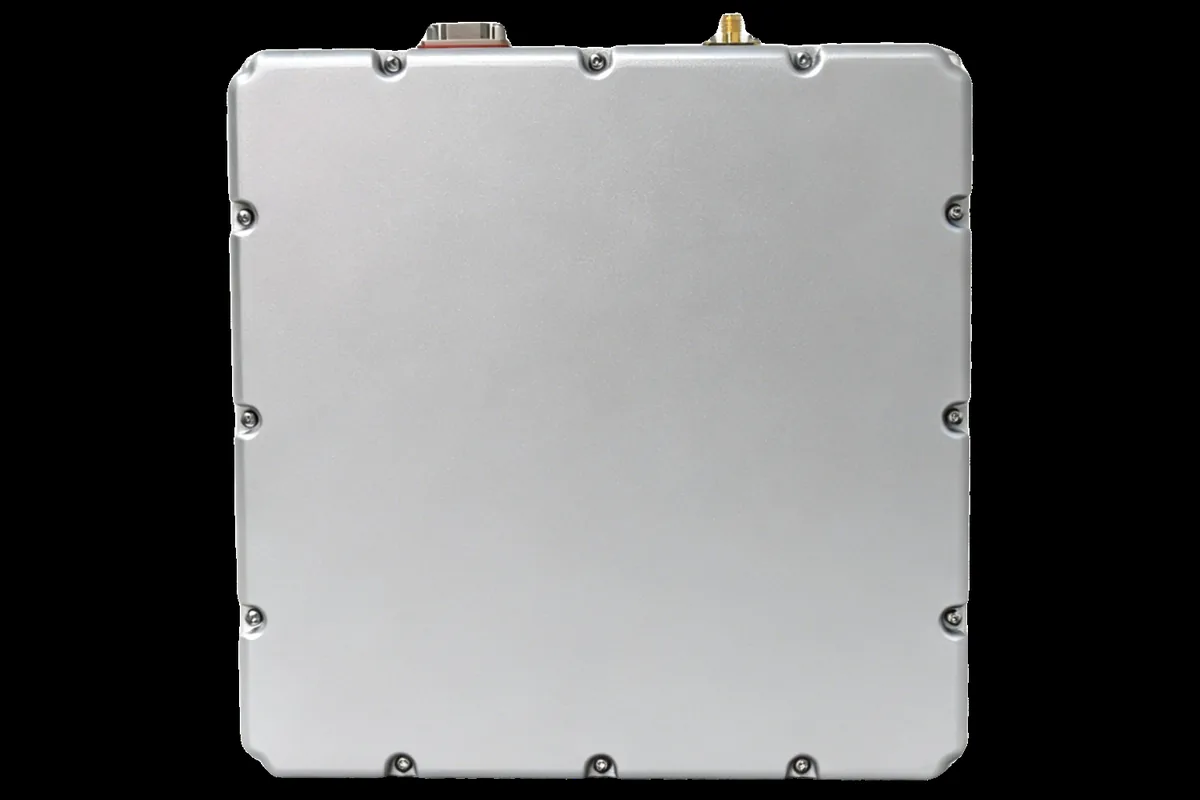

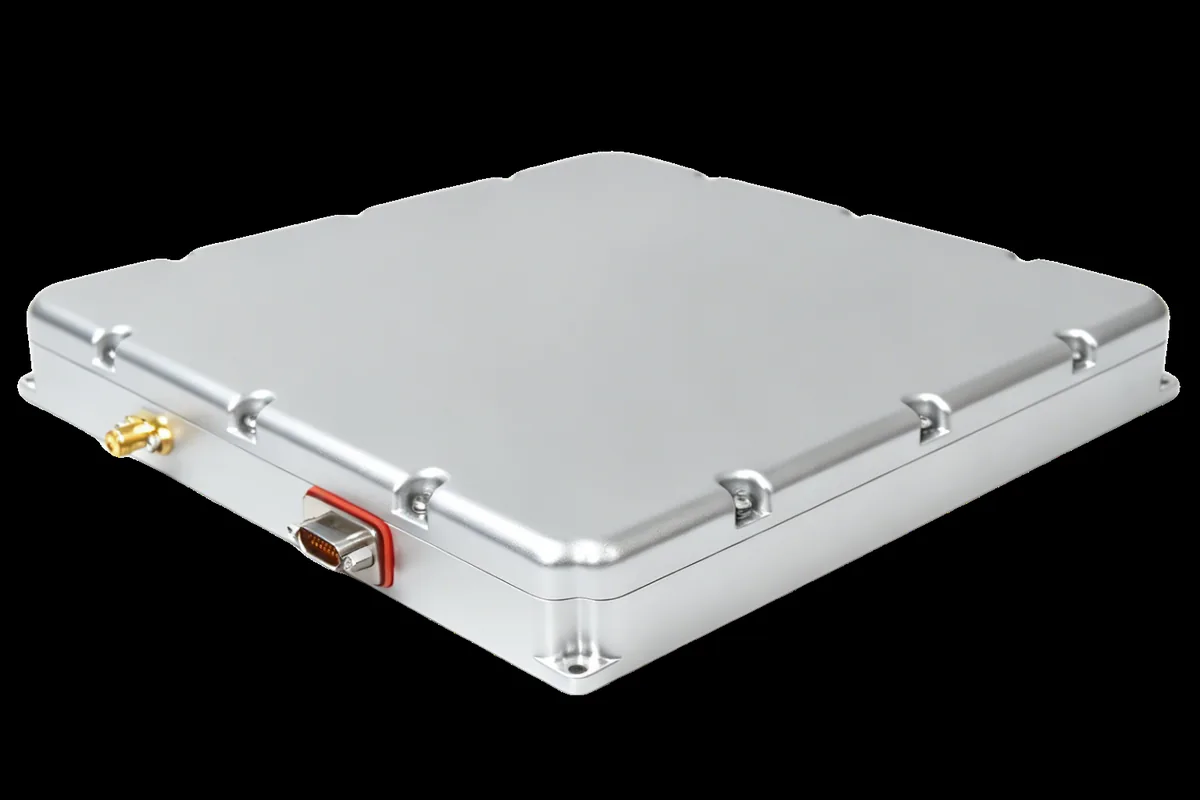

Single Frequency Anti-Jamming 16-element Array Antenna
Large platforms and ground stations
- Size
- 200 × 200 × 26 mm
- Weight
- ≤ 1250 g
- Supply
- DC 12–36 V
- Mounting
- Overhead installation
07

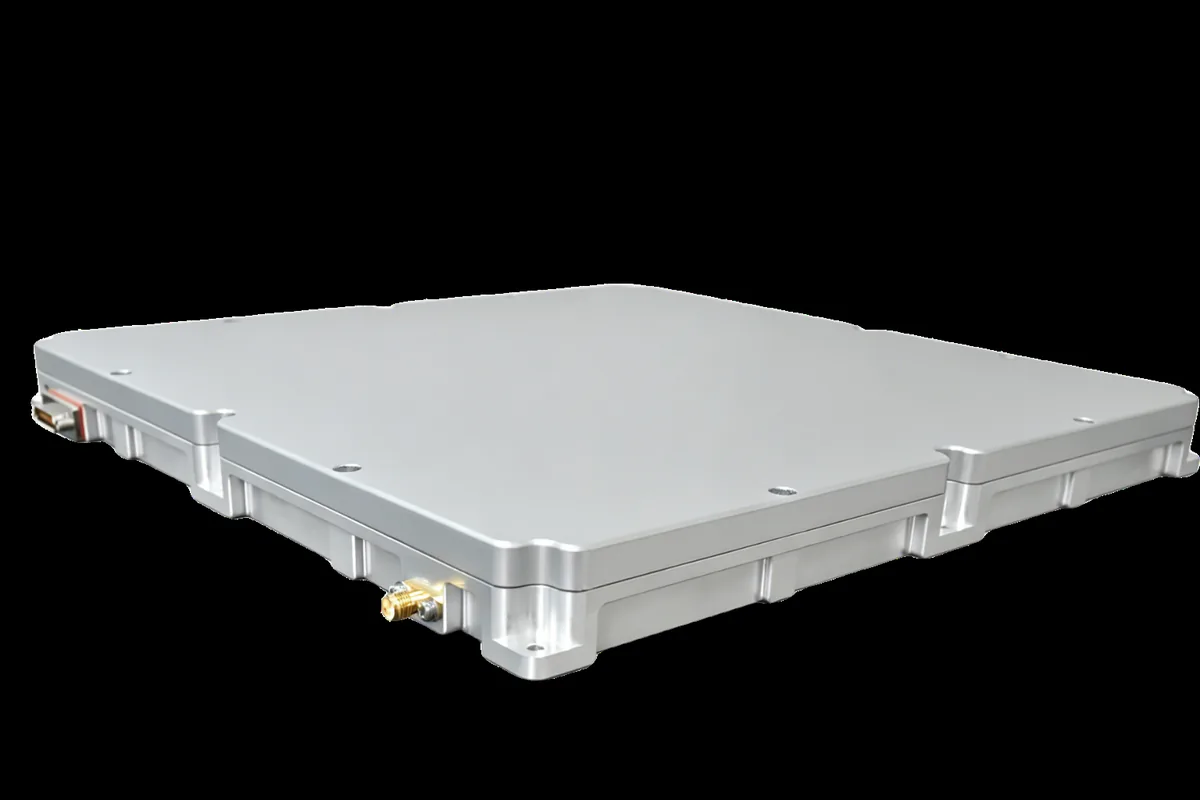

Dual Frequency Anti-Jamming 16-element Array Antenna
Fixed installations and monitoring stations
- Size
- 300 × 300 × 27.6 mm
- Weight
- ≤ 2500 g
- Supply
- DC 24–36 V
- Mounting
- Overhead installation
Integrated anti-jamming and anti-spoofing units
Four CRPA units that combine interference rejection with signal-integrity checking, so positioning stays trustworthy where both interference and misleading signals are a concern.
01
Single Frequency Anti-Jamming & Anti-Spoofing 4-element Array Antenna
Small and medium unmanned platforms
- Size
- 100 × 100 × 24.9 mm
- Weight
- ≤ 280 g
- Supply
- DC 12–36 V
- Mounting
- Overhead installation
02
Single Frequency Anti-Jamming & Anti-Spoofing 8-element Array Antenna
Heavy-lift and multi-payload platforms
- Size
- 180 × 180 × 25.5 mm
- Weight
- ≤ 890 g
- Supply
- DC 12–36 V
- Mounting
- Overhead installation
03
Single Frequency Anti-Jamming & Anti-Spoofing 16-element Array Antenna
Large platforms and ground stations
- Size
- 280 × 280 × 28 mm
- Weight
- ≤ 2200 g
- Supply
- DC 12–36 V
- Mounting
- Overhead installation
04
Dual Frequency Anti-Jamming & Anti-Spoofing 16-element Array Antenna
Fixed installations and monitoring stations
- Size
- 370 × 370 × 28 mm
- Weight
- ≤ 2800 g
- Supply
- DC 24–36 V
- Mounting
- Overhead installation
How a unit connects to your platform
Two integration modes are supported. In RF output mode the unit feeds your existing receiver over coaxial cable. In serial output mode the unit delivers a position solution directly to the flight controller or navigation computer.
Connector types, cable lengths and protocol details are confirmed during project review.
Not sure which unit fits your platform?
Send us the platform type, payload budget and operating environment. We will recommend a configuration and release the matching datasheet after review.
